Vmadelaser : Best Laser Welder for Sale
Find the Right Laser Welding Machine Manufacturer in China.
High Quality Laser Welding Machine with Competitive Price.
Source Laser Welding Machine from China Now!
About Three-in-one portable laser welder
Welding, Cleaning and Cutting Three Use
Small size and light weight, easy to learn, only a few hours for beginners to get started. Realize the three functions of cleaning,
welding and cutting at the same time uses the power of your laser for pre and post weld cleaning.
Latest upgrade 5-in-1 details please click: https://www.vmadecnc.com/news/5-in-1-handheld-laser-welding-machine.html
If you are interested in our products, please contact us now, We will give you the best price!

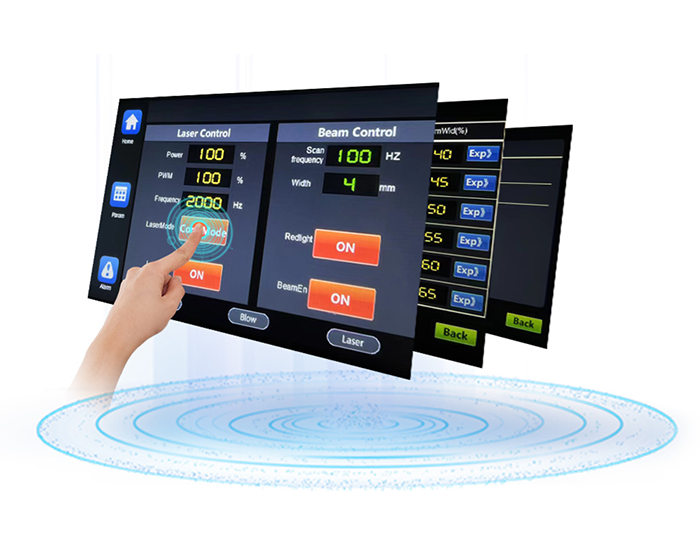

Intelligent Operating System
Adopt touch screen design, easy and quick to click and set, with real-time fault reading, feedback and alarm functions.
There is a process parameter library, which can realize the rapid storage and recall of cleaning process parameters.
Remote controller at the welder side for multi-parameters adjustment. Save time and effort, easy to operate.

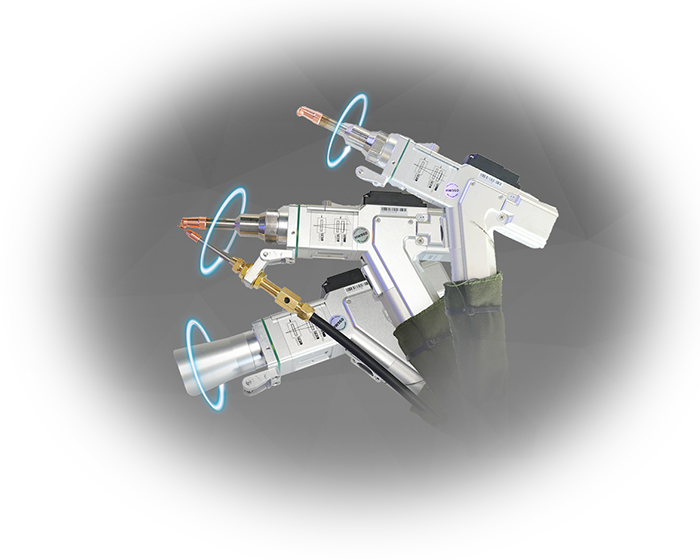

Au3tech Laser Welding & Cleaning Head
Dual protective windows design,Protect the focusing lens from dust contamination

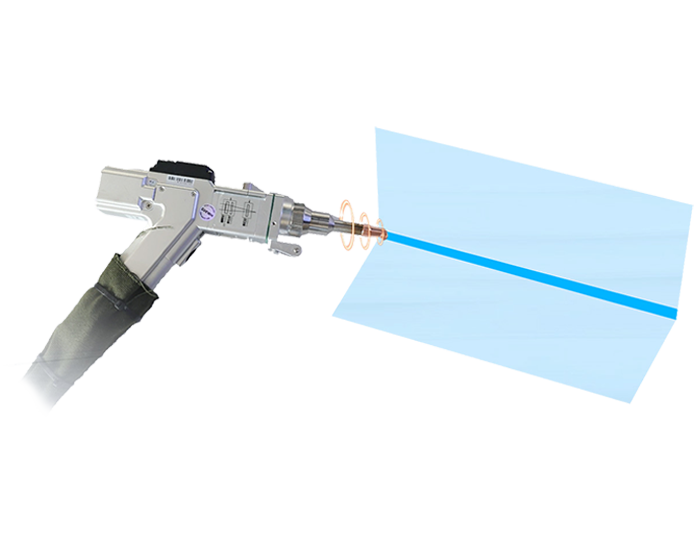

Various welding methods
The welding seam is smooth and beautiful, and the welding quality is good. It can realize spot welding, continuous spot welding, fish scale welding, full welding, and continuous full welding.
Technical Parameters
Machine Model | LCW Series Laser Welding & Cleaning System |
Laser power | 1000W 1500W 2000W (optional) |
laser wave length | 1064nm |
Fiber length | Standard10M / Maximum 15M |
Welding speed | 0~120 mm/s |
Cooling chiller | Industrial water chiller |
Working environment temperature range | 15~35 ℃ |
Welding thickness recommendations | 0.5-3mm |
working voltage | 220 V |
Cleaning parameters | cleaning width : 0-80mm |
Focus height : 600mm |
Application Industry

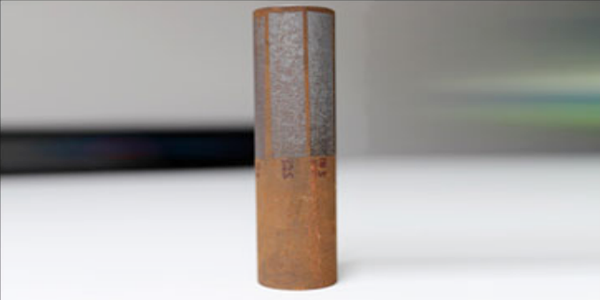

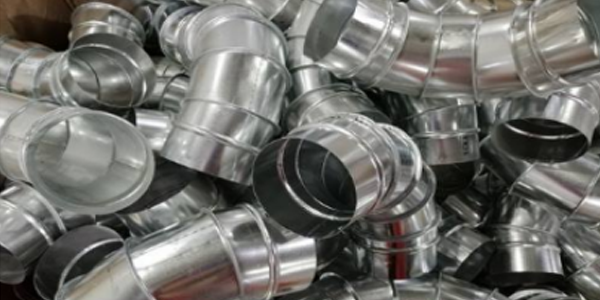

Laser cleaning and welding machine can remove the object surface resin, the paint, the oil pollution, stains, dirt, rust, and oxide coatings.Can weld iron, aluminum alloy, stainless steel and other materials
