Large Format Laser Cutting Machine, Large Format Laser Cutter

Vmadelaser : Best Large Format Laser Cutting Machine for Sale.

Working area of Large format laser cutter is up to 20m*4m( Support customization) allow you to safely cut a range of metal materials with high speed and accuracy.

Find the Right Laser Cutting Machine Manufacturer in China. High Quality Laser Cutting Machine with Competitive Price.

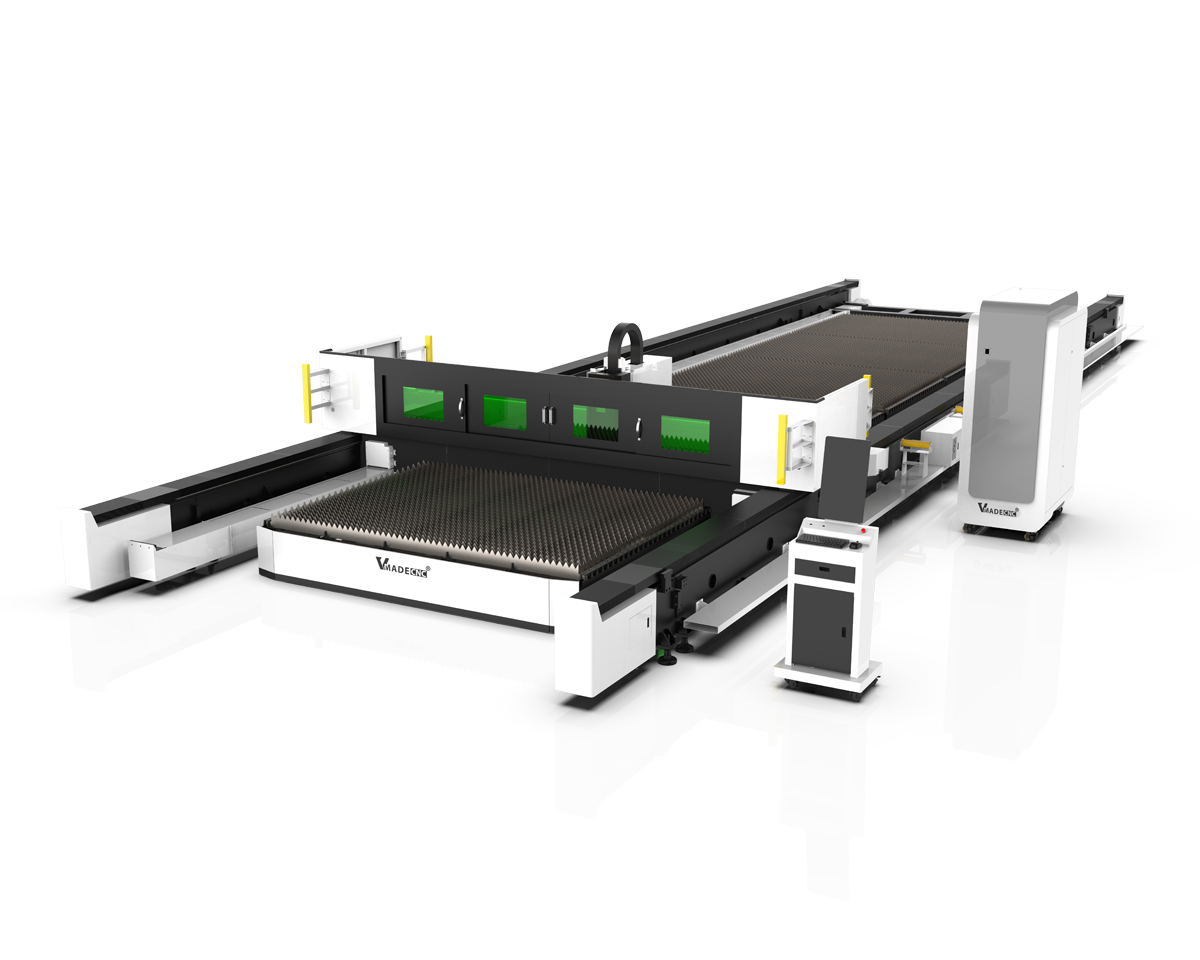

About Large Format Laser Cutting Machine/Cutter

Our large format flatbed laser cutter with a working area of 20m*4m. And can reach up to 8000W laser power. This allows seamless cutting of very large metal materials. Our large format laser cutting machine provides an economical solution for large format, fine or fast cutting of stainless steel, carbon steel, silicon steel, aluminum alloys and other metals. Our large format laser cutter are the toughest, most accurate and most reliable on the market.

Applicable Industry&Materials

Our large format laser cutting machine is widely used in the machine industry. For example, agricultural machinery, textile machinery, food machinery and construction machinery and other large machinery and equipment manufacturing, usually use high power fiber laser cutting machine for processing. Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, aluminum-plating zinc plate, copper, and other metals.

Advantages of Large Format Laser Cutting Machine：

(1)The working area of 20m*4m of the cutter machine is designed for large format materials.

(2)The aviation aluminum beam is manufactured according to aerospace standards, which has good toughness, light weight, corrosion resistance, oxidation resistance, low density, and can greatly increase the processing speed..

(3) Segmented rectangular tube welded bed. High strength, strong tensile strength, and more stability, ensuring that it will not be deformed after 20 years of use.

(4)Auto focus cutting head. No manual operation, simple auto focus.

(5)Independent control cabinet. Dust-proof, automatic constant temperature.

(6)PAD design display screen. Apple pad design, vertical screen display.

Segmented splicing bed can be customized and lengthened

( about 15.6M *4.1 M )

Modular splicing bed, separated double guide rails on both sides, integrated welding gantry, flexible disassembly of the knife bar bracket, customized and lengthened bed, quick and efficient production.

Automatic obstacle avoidance

360'degree radar system will foresee and detect any obstacles enabling Z axis wit n a High-speed to Immediately avoid obstacles in case of collision;

Lower damage rate of laser head.reduces customer's maintenance cost accordingly,so as to prolong cutter's Service life;

Segmented smoke exhaust and dust removal

Follow-up smoking Each section of the bed is equipped with a smoke exhaust device to accurately exhaust smoke; the axial flow fan surrounds the downward exhaust smoke 360 ° strong absorption; it can filter out harmful gases, smoke, and dust.

Monitoring system

High-definition intelligent monitoring system, controllable cutting process, intelligent security Unattended safety is 100%, and itinerary is automatically protected.

Taiwan YYC rack gear with double driver and HINWIN/LAPPIN Guide Rail

Heavy track, double guide rail, stable, high cutting precision

Head and tail are separated, can Reduce transportation volume and cost

Technical Parameters

Laser power	1000W 2000W 3000W 4000W 6000W 8000W( Optional)
Working area	20m*4m( Support customization)
Specified voltage and frequency	380V 50Hz/60Hz
Z Max stroke	280 mm
X/Y Axis positioning accuracy	±0.01mm
X/Y Axis repeat positioning accuracy	±0.02mm
Rack gear	Taiwan APEX/YYC
Reducer	France Motovario Reducer
Table loading capacity	10000KG
Screw	TBI
cross member	Aviation Aluminum
control system	CYPCUT
Servo and motor	Yaskawa

Working areas and laser power can be customized on request. Laser system configurations tailored to your applications are available.

Application Industry

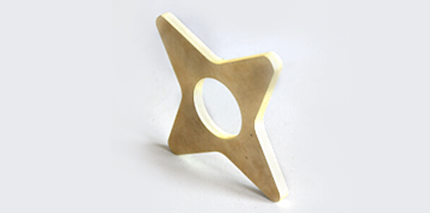

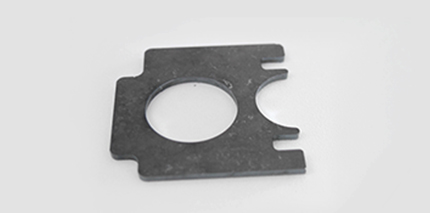

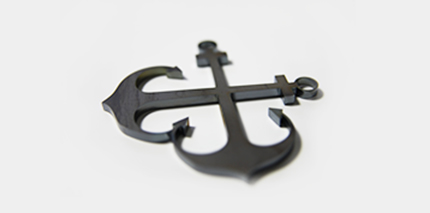

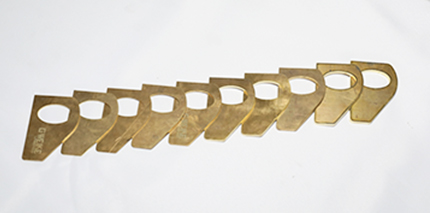

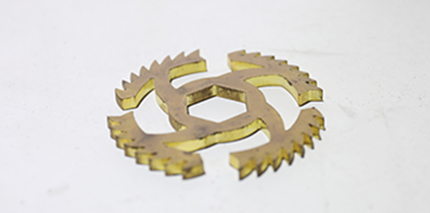

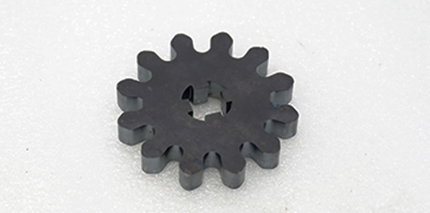

Large format laser cutter is used for cutting a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.
