We all know that in the shipbuilding industry, 70% of the hull is made of steel plates and steel sections, most of which are large-sized metal components.Driven by the strong demand for ultra-large format sheet cutting in the industry, Vmade SA series of Ground rail ultra-large format laser cutting machines were launched, and delivered to customers in the shipbuilding industry with an ultra-large format of 40m.

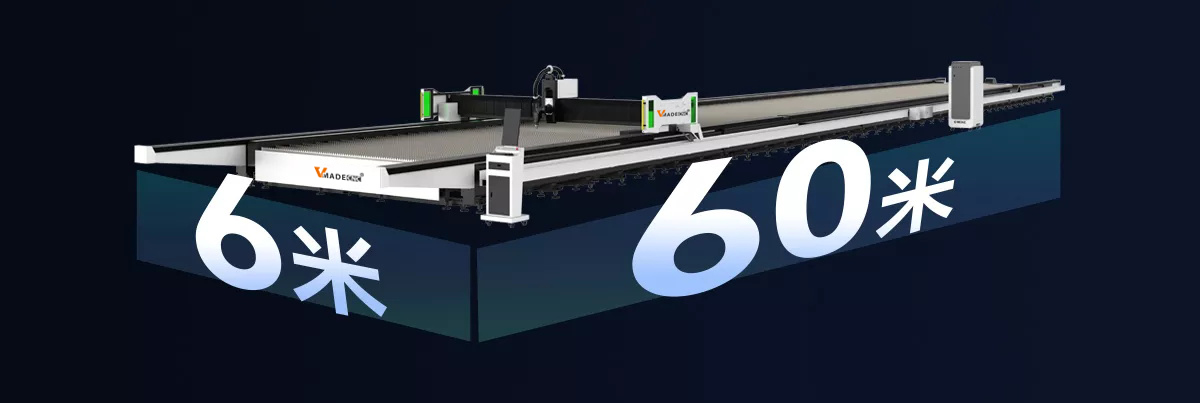

Up to 60 meters long, the cutting platform can be customized as you like

Linear multi-track structure, high-speed and stable operation. The maximum width can reach 6 meters, and the longest length can reach 60 meters.

Can be configured with double beam and double head structure,without interfering with each other.

The ultra-large processing platform makes it easy to cut the entire board.

 Proficient in design and stable load bearing

The separate design of the platform and the machine bed reduces the impact of the load on the bed and extends the service life. The integrated bed ensures long-term high-efficiency and high-precision cutting of the equipment.

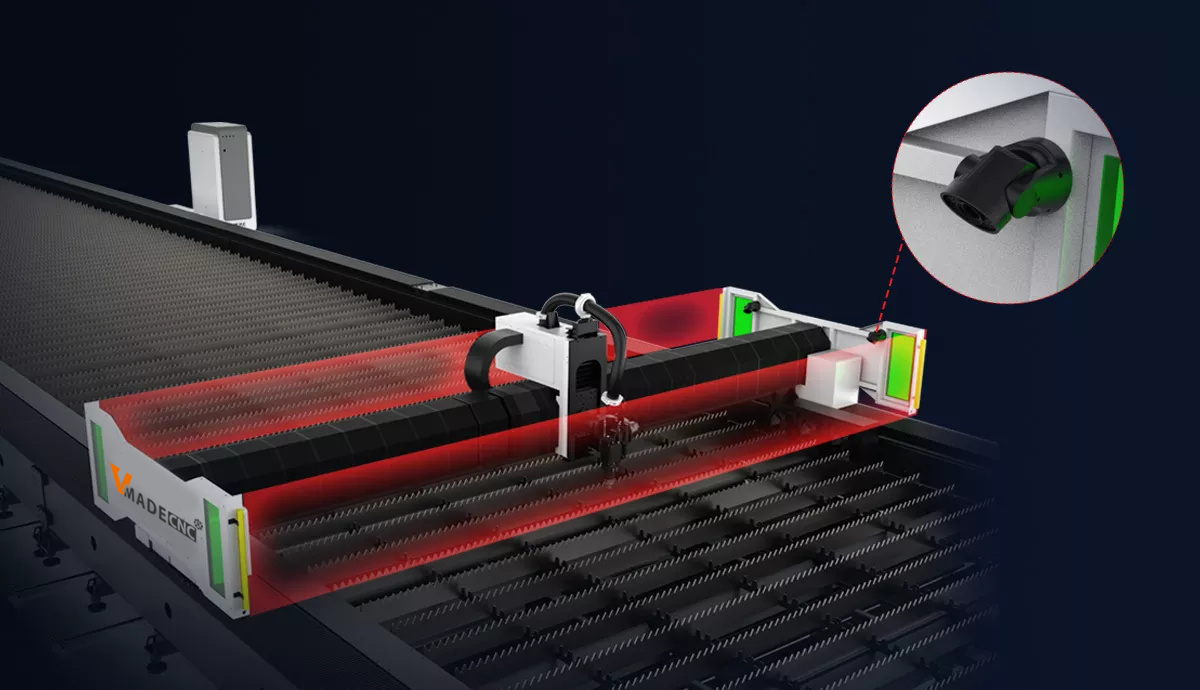

Safety protection, multiple security guards

A pair of safety gratings are installed at the front and rear of the beam.
Better guarantee the safety of machine operators;
HD intelligent real-time monitoring system,
Achieve complete control of the cutting process.

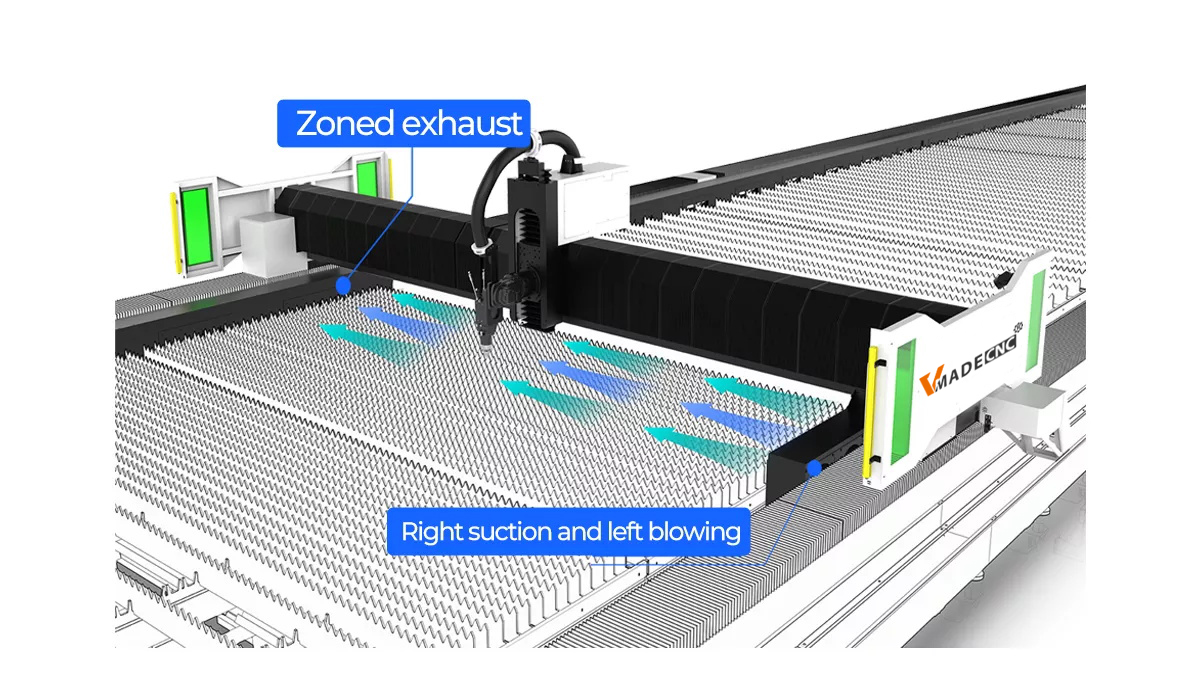

Powerful dust removal expert with both blowing and suctioning

"Follow-up blowing + array-type smoking" dust removal structure Follow-up fan can blow air with the reciprocating movement of the beam Cutting table array partition synchronous smoking, A two-pronged approach creates better dust removal results.

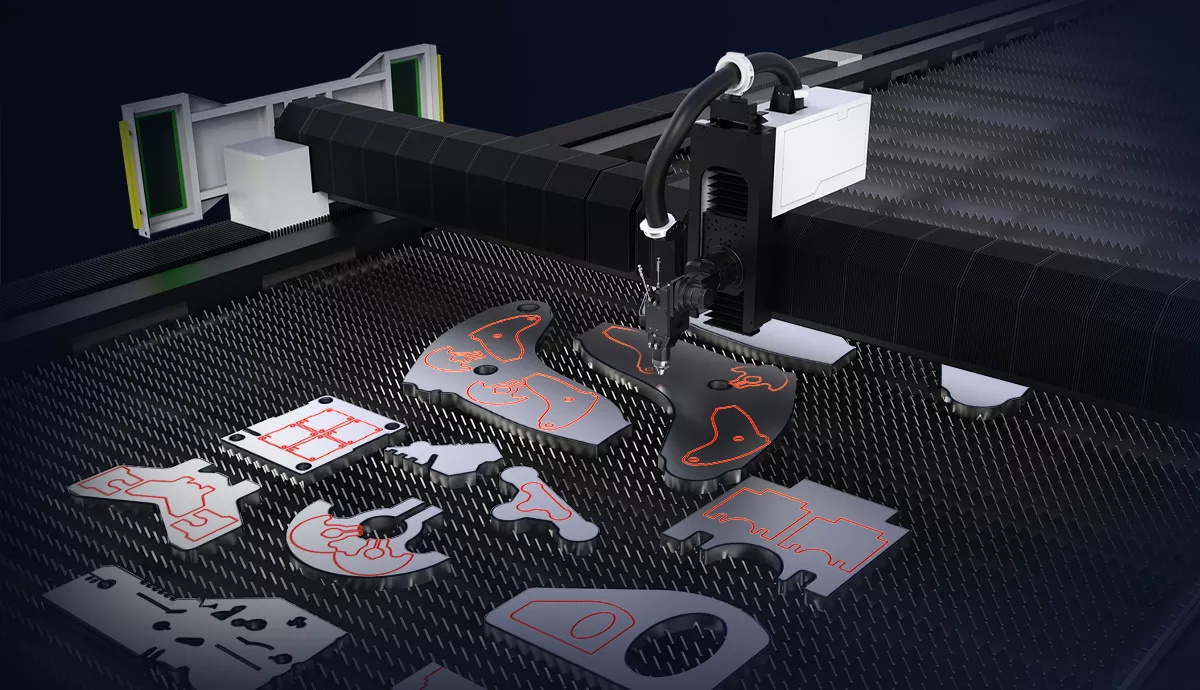

Visual Residual Material Processing

Visual residual material improves efficiency
Accurate extraction of complex residual material contours,
One-click batch scanning,
Production capacity increased by 200%,
Residual material layout utilization increased by 175%,
Steady help customers increase efficiency and reduce costs.

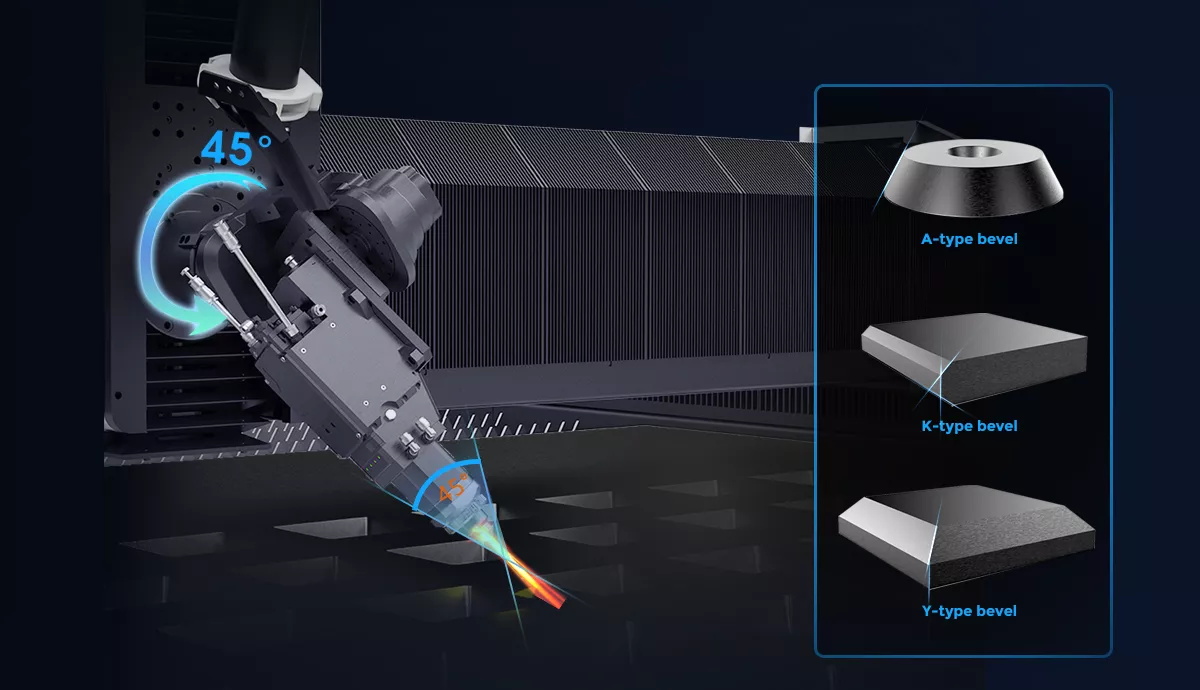

Strong ability to cut thickly without fear of bevel cutting
Adopting AB double-swing laser cutting head,
Supporting various shapes such as x-type, y-type, v-type,
Meeting the needs of 0-45° multi-angle bevel cutting.

With Larger Format & Upgraded Performance
SA series of Ground rail ultra-large-format laser cutting machines
Empowering the shipbuilding, steel structure, and engineering industries to move forward in new directions.
