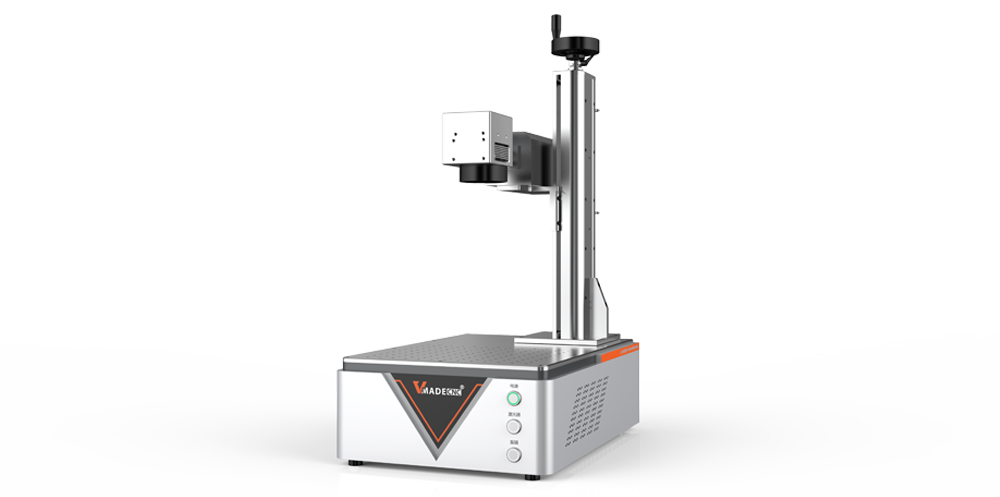

Vmade portable fiber laser marking machine is a special marking machine designed for marking metal and non-metal components, which is high performance, durable, reliable, high speed, maintenance-free, environmentally friendly and easy to move.
1. Long life
2. No consumable materials, Zero-maintenance
3. Excellent beam quality to achieve fine small marking
4. Can marking various figure, character, logo, bar code, bitmap, two-dimension code, photo etc
5. Support PLT, PCX, DXF, BMP, AI, vector graphics, bitmap etc
6. Stable equipment performance, continuous 24 hours working
• Wavelength field lens with 110*110, 150*150, 200*200, 300*300mm marking/engraving size
• 20W-50W Raycus China best laser source with extremely long lifespan 100,000 hours (The best)
• SINO-GALVO scanning head (The best)
• Genuine BJJCZ card (The best)
• EzCad marking software

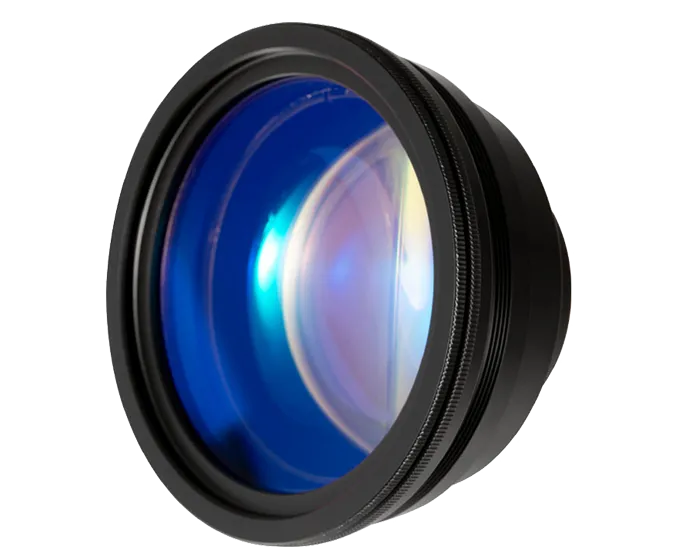

F-theta-lens
High quality wavelength tech optical lens, we have optional size: 75*75mm,110*110mm,150*150mm, 175*175mm, 200*200mm, 250*250mm, 300*300mm etc(optional, but prices vary)you can choosse one suitable size according to your needs.

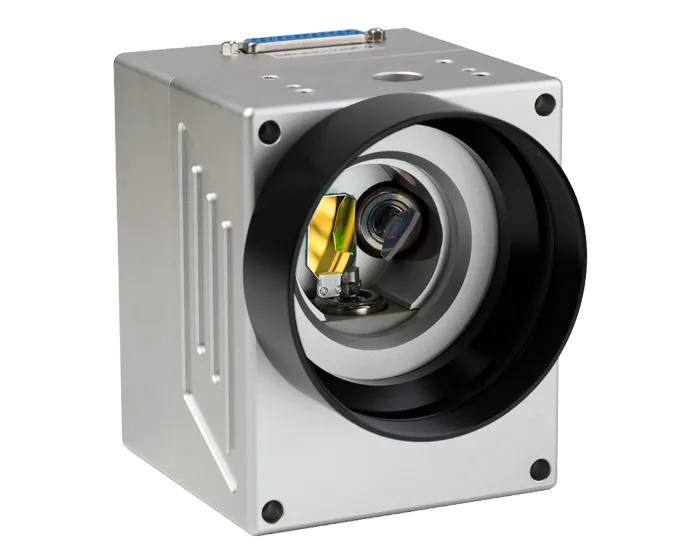

Best quality digital Galvotech scan head
Come with newest digital type scan head with double red dots build in more easy to get focus; Failed warning light ensure machine running correctly.

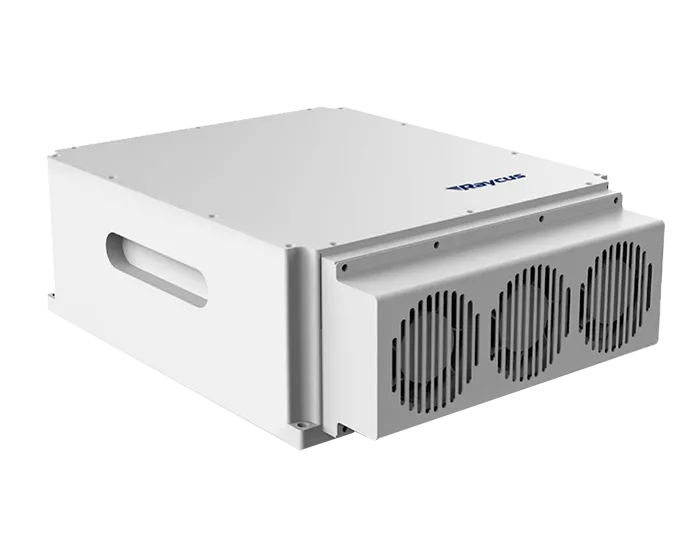

Raycus China best laser source
1.Highly stable laser output
2.High single-pulse energy
3.High marking efficiency
4.Short pulse setup time
5.High reliability

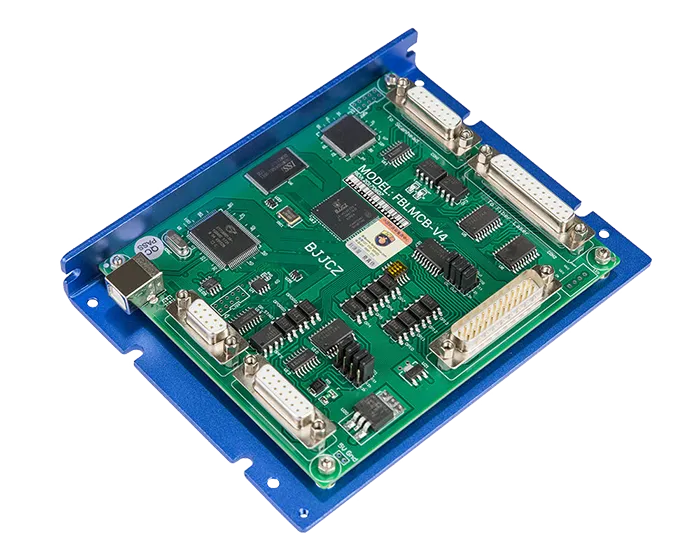

Genuine BJJCZ card
Software: EZCAD, control system WIN7, WIN8, WIN10 are ok

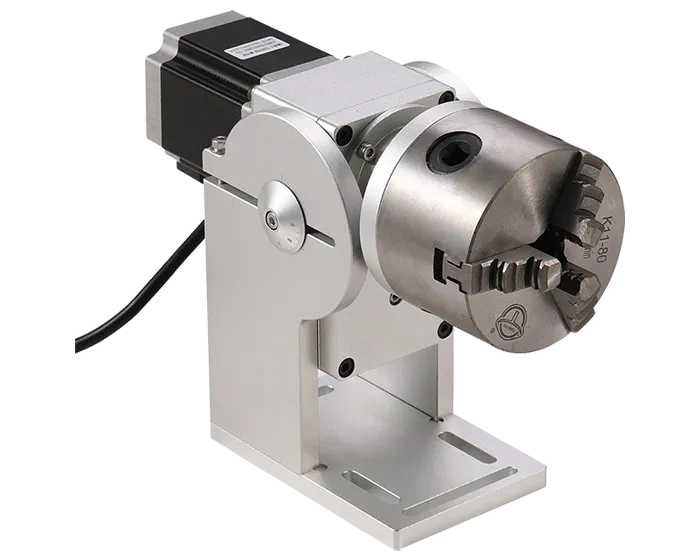

Rotary Device
Widely used for cylindrical objects, arc-shaped markings, easy to operate. With a rotating card slot on the headeasy installflexible adjustment.
Technical Parameter of Portable Laser Marking Machine
| Machine name | Portable Fiber Laser Marking Machine |
| Laser power | 20W 30W 50W optional |
| Laser type | Fiber laser |
| Laser source brand | Raycus/JPT/MAX/IPG |
| Laser Wavelength | 1064nm |
| Marking area | 110*110, 150*150, 200*200, 300*300mm (optional) |
| Marking depth | 0-2mm ( Depending on material type and time) |
| Max marking speed | 0-7000mm/s |
| Min linear width | 0.02mm |
| Control software | EZCAD software |
| Graphic format supported | BMP, DXF, PLT, AI, DST, JPG,etc |
| Working voltage | AC220V 50HZ AC110V 60HZ |
| Cooling type | Air cooling |
| Warranty time | 3 years |
| Gross weight | 45kgs |
| Packing size | 75x41x78cm |

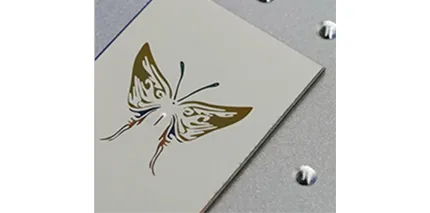

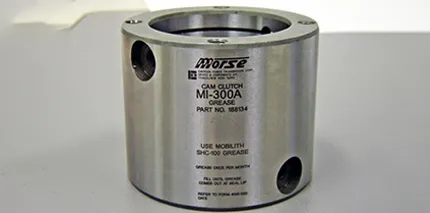

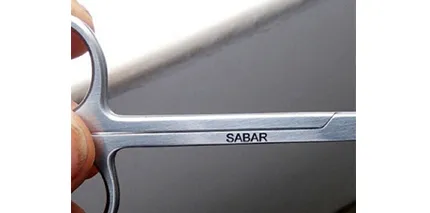

Portable Fiber Laser Marking Machine Applications
Metal material (gold, silver, copper, Iron, aluminum, titanium, zinc, stainless steel, etc)
Plastic material (PC、PVC、PE、HDPE、ABS、PPR、PET、HIPS、PS、PP、PPO、PA)
Others (Oil paint surface, coating surface, plastic film, package, etc)
50w 60W 80W 100w 120w more suit for deep engraving and cutting 1mm thickness metal jewelry.
