14 Years Professional Laser Equipment Manufacturer - Factory Direct & Fast Shipping Growing Together With Our Customers

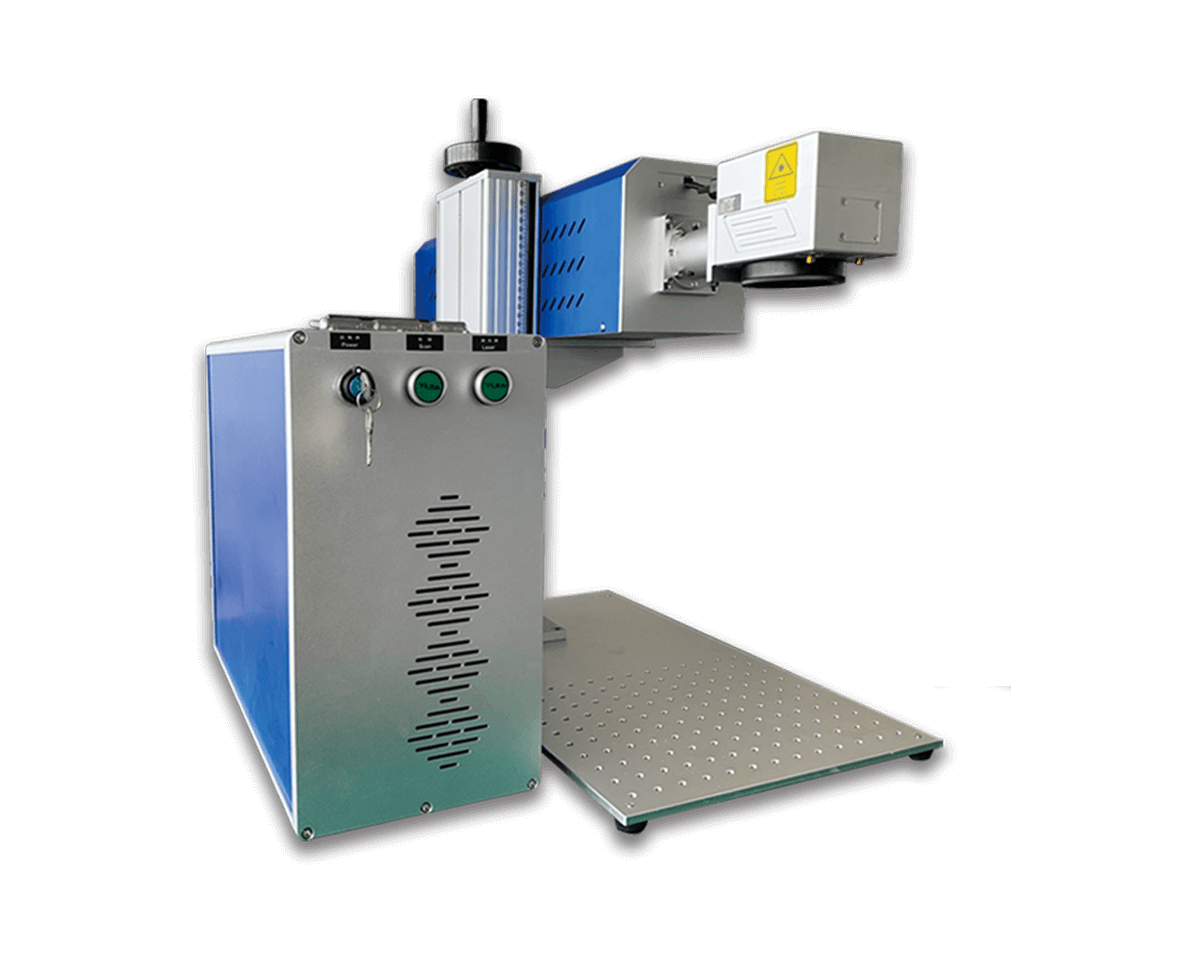

This is a compact CO2 Series Portable Laser Marking Machine that uses a CO2 laser to create permanent markings on a variety of materials, including wood, paper, leather, cloth, plexiglass, epoxy, acrylic, unsaturated polyester resin and other non-metal materials. Our Portable CO2 Laser Marking Machine adopts CO2 laser source imported from DAVI/ ACCESS/ COHERENT, equipped with high-speed oscillator scanning system, excellent laser beam, small divergence angle, integrated laser structure. Easy maintenance, stable performance and high reliability.
Main Features of Portable CO2 Laser Marking Machine
*The engraving depth can be controlled as desired without the need for consumables. The machine boasts a good beam pattern and stable performance, requiring no maintenance. This makes it ideal for high-volume, multi-species, high-speed, and high-precision industrial processing sites with low processing costs and no consumable requirements.
*Adopted the imported CO2 laser tube, its beam is of superior quality, stable light and low failure rate. It has a good electro-optical conversion rate.
*Portable Laser Marking Machine is designed to be portable, making them ideal for on-site or mobile marking applications.
*Portable CO2 laser marking machines feature a user-friendly interface that makes it easy to set up and operate the machine, even for those with limited experience.
Laser Module
DAVI/ ACCESS/ COHERENT as your reference.
20w/ 30w/ 55w laser power as your requirement.
Stable operation, lifespan of more than 100, 00 hours.
Galvo Scan Head
Newest digitagalvo scanner head
Aperturesize16mm
Linearity>99.90%
Repeatability<8urad
Longterm drift over 8 hours
<0.5urad
Control Program
The newest Genuine version
BJJCZcontrol board with
EZCAD control program
which is compatible with
win7/win8/win1032 and 64 bits
F-theta-lens
High quality wavelength tech optical lens, we have optional size:75*75mm, 110*110mm, 150*150mm, 175*175mm, 200*200mm, 250*250mm, 300*300mm etc(optional, but prices vary)you can choosse one suitable size according to your needs.
Best quality digital Galvotech scan head
Come with newest digital type scan head with double red dots build in more easy to get focus;Failed warning light ensure machine running correctly.
Technical Parameters
Machine Type | VLF-CO2-10W 30W 60W 100W |
Laser Output Power | 10W 30w 60W 100W |
Power stability(from cold start)guaranteed | +/-5% |
Laser beam quality | M2<1.2 |
Beam combination spot size | 2.5mm |
Beam expanding spot size | 15mm |
Reflection beam sopt size | 16mm |
Wavelength | 10.60um |
Control system | EZCAD work with win7/8/10 |
Focus method | Double red dots |
Cooling way | Air cooling |
Working Area | 70*70mm-300*300mm |
Linearity | 99.90% |
long term drift over 8 hours | <0.5urad |
Repeated Accuracy | <=8urad |
Minimum Line Width | 0.015mm |
Power Supply | 220V/50HZ or 110V /60HZ |
Package size | 109*46*78cm |
Gross weight | 90kgs |
Application Industry
Portable CO2 laser marking machine is suitable for wood, paper, leather, cloth, plexiglass, epoxy, acrylic, unsaturated polyester resin and other non-metal materials.
Sample display
Payment
TT, L/C
Packaging
Export fumigation-free wooden boxes.
Warranty
Three years.
Supply Ability
1000 units per month
